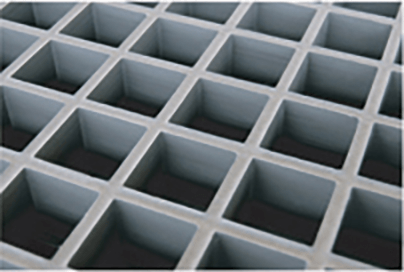

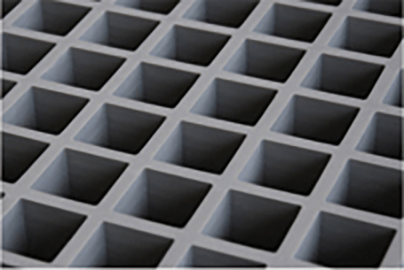

FRP Grating 20*20H30
Please feel freely to contact with us for new price .
Genius FRP
Glass fiber reinforced plastic ( FRP ) molding grid is a kind of plate material with a certain opening rate, which is made of unsaturated polyester resin ( including isophthalic up, linbenxing, type and fenquanxing, bisphenol ) as skeleton in the customization mold.
Name | Content | Type |
Resin | 35% | OFR-25、IFR-25、VEFR-25 |
Fiberglass | 33% | E |
Filler | 31% | ATH、PR |
Others | 1% | --- |
Resin type
Code | Resin type | Flame retardant property | Recommended usage occasions |
MP-5 | Phenolic type | Oxygen index can reach about 80 | Low toxicity and high flame retardant, fire safety is very important for the occasion |
VEFR-25 | Vinyl type | Oxygen index 28 or above | Acid, alkali and other corrosive harsh environment |
VEFR-10 | Vinyl type | Oxygen index 35 or above | Flame retardant requirements of high acid, alkali and good occasions |
IFR-25 | Meta benzene | Oxygen index 28 or above | A VEFR type economy, and excellent, moderate acid alkali and solvent |
IFGR-30 | Benzene food grade | Oxygen index 26 | Mainly used in meat products and food processing plants |
OFR-25 | Ortho type | Oxygen index 28 or above | General acid and alkali environment |
OCR | Ortho type | Oxygen index below 28 | OFR-25 economy, no flame retardant requirements |
The type selection of coarse glass fiber
Code | Coarse sand type | Recommended usage occasions |
E | Non alkali sand | For high strength requirements and high corrosion resistance of the occasio |
Selected filler type
Code | Filler type | Recommended usage occasions |
ATH | Aluminum hydroxide | Retardant, smoke suppression, corrosion-resistant occasions |
PR | No filler, pure resin | For high corrosion-resistant applications |

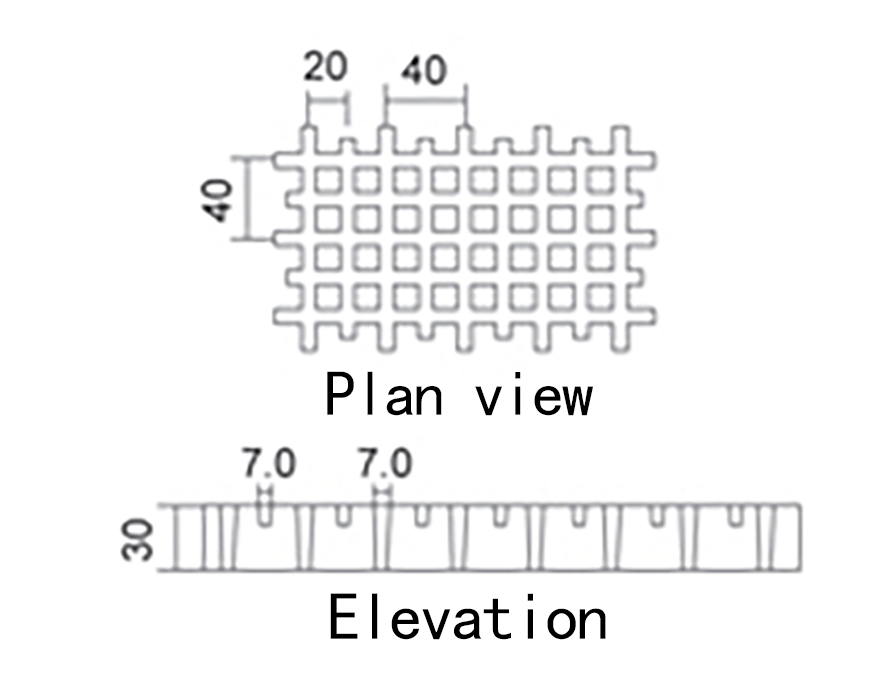

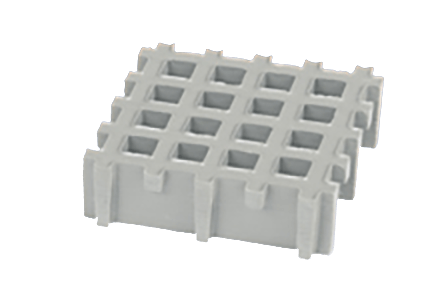

20*20*30(mm)
Panel size available:
1007*4047,1007*3007 Bidirectional force.
Bearing bar thickness (Top/Bottom)：7.0/5.0
Bearing bar center：20
Open Aera：42%
Approx Weight：18kgs/m²
The characteristics:
Corrosion Resistant

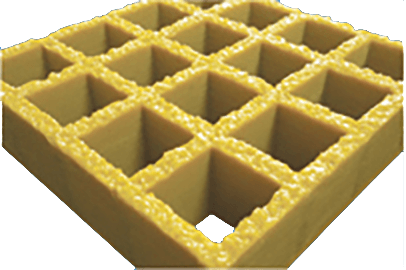

Slip Resistant
Superior Ergonomics
Low Install Cost
Fire Retardant
Lightweight,Bi-directional Strength, and the cutting makes the pipes easier to install.
The internal and external uniform color and color can be arbitrary choice.
It has good social and economic benefits.
Can design , flexible and varied size, size stability
Widely used in:
Genius FRP grating is widely used in landing (industrial) floor, stairs and walkways and platforms. Using glass fiber reinforced plastic grille has many advantages: glass fiber reinforced plastic grille, weather resistance, low maintenance cost, has a long service life and good anti-skid performance. In addition, the glass fiber reinforced plastic grille is simple, fast, flexible processing and assembly.
应用场景
FRP模塑格栅常用于电镀、化工、污水处理、海洋工程等对耐腐蚀要求较高的平台、走道与沟盖板场合，也适用于需要绝缘、轻质承载的检修通道。20×20H30网格规格适合对开孔率与承载有综合要求的区域，欢迎联系我们说明您的工况以获得适用建议。
选型指导
选型时通常需确认树脂体系（如邻苯、间苯、乙烯基酯、酚醛等）、格栅厚度与网格尺寸、承载等级以及使用环境的腐蚀介质与温度条件。本页所列原材料配比与树脂类型仅供参考，具体规格请与我们沟通后确认，欢迎联系我们获取详细规格与报价。
产品优势
FRP模塑格栅以玻璃纤维增强树脂一体成型，具有耐腐蚀、轻质高强、绝缘无磁、易于切割安装等特点，长期使用维护成本相对较低。不同树脂体系可对应不同耐蚀与阻燃需求，具体性能表现需结合实际工况评估，欢迎联系我们获取详细规格与报价。
询盘引导
如需了解FRP Grating 20×20H30的尺寸公差、颜色、表面处理及包装运输等细节，请提供使用场景、数量与目标市场等信息，便于我们给出针对性方案。欢迎联系我们获取详细规格与报价，我们将尽快安排专人对接。
