玻璃钢模塑格栅25*152H38楼梯踏板
Please feel freely to contact with us for new price .
Genius FRP
Glass fiber reinforced plastic ( FRP ) molding grid is a kind of plate material with a certain opening rate, which is made of unsaturated polyester resin ( including isophthalic up, linbenxing, type and fenquanxing, bisphenol ) as skeleton in the customization mold.
Name | Content | Type |
Resin | 35% | OFR-25、IFR-25、VEFR-25 |
Fiberglass | 33% | E |
Filler | 31% | ATH、PR |
Others | 1% | --- |
Resin type
Code | Resin type | Flame retardant property | Recommended usage occasions |
MP-5 | Phenolic type | Oxygen index can reach about 80 | Low toxicity and high flame retardant, fire safety is very important for the occasion |
VEFR-25 | Vinyl type | Oxygen index 28 or above | Acid, alkali and other corrosive harsh environment |
VEFR-10 | Vinyl type | Oxygen index 35 or above | Flame retardant requirements of high acid, alkali and good occasions |
IFR-25 | Meta benzene | Oxygen index 28 or above | A VEFR type economy, and excellent, moderate acid alkali and solvent |
IFGR-30 | Benzene food grade | Oxygen index 26 | Mainly used in meat products and food processing plants |
OFR-25 | Ortho type | Oxygen index 28 or above | General acid and alkali environment |
OCR | Ortho type | Oxygen index below 28 | OFR-25 economy, no flame retardant requirements |
The type selection of coarse glass fiber
Code | Coarse sand type | Recommended usage occasions |
E | Non alkali sand | For high strength requirements and high corrosion resistance of the occasio |
Selected filler type
Code | Filler type | Recommended usage occasions |
ATH | Aluminum hydroxide | Retardant, smoke suppression, corrosion-resistant occasions |
PR | No filler, pure resin | For high corrosion-resistant applications |

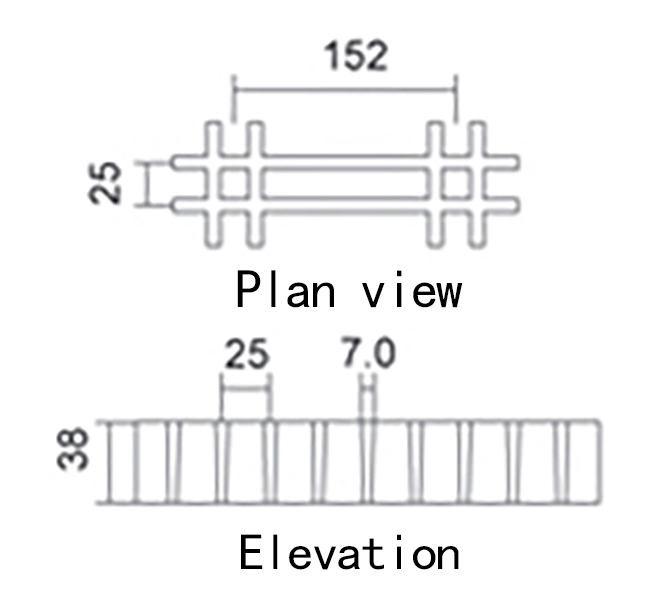

25*152*38(mm)
Panel size available:
565*3050 Bidirectional force
Bearing bar thickness (Top/Bottom)：7.0/5.0
Bearing bar center：25
Open Aera：62%
Approx Weight：23.1kgs/m²
The characteristics:
Corrosion Resistant
Slip Resistant
Superior Ergonomics
Low Install Cost
Fire Retardant
Lightweight,Bi-directional Strength, and the cutting makes the pipes easier to install.
The internal and external uniform color and color can be arbitrary choice.
It has good social and economic benefits.
Can design , flexible and varied size, size stability
Widely used in:
Genius FRP grating is widely used in landing (industrial) floor, stairs and walkways and platforms. Using glass fiber reinforced plastic grille has many advantages: glass fiber reinforced plastic grille, weather resistance, low maintenance cost, has a long service life and good anti-skid performance. In addition, the glass fiber reinforced plastic grille is simple, fast, flexible processing and assembly.
应用场景
玻璃钢模塑格栅25*152H38楼梯踏板适用于化工、污水处理、电镀、海洋工程等腐蚀性环境中的平台与楼梯通道。其模塑成型结构提供防滑表面与承载能力，适合需要耐腐蚀、轻质且免维护的步行区域，欢迎联系我们了解具体工况适配方案。
选型指导
选型时请确认树脂类型（如邻苯型、间苯型、乙烯基酯型或酚醛型）与使用环境的腐蚀介质、阻燃要求相匹配，同时结合承载需求与安装方式确定格栅厚度与支撑间距。我们可根据您的工况推荐合适配置，欢迎联系我们获取详细规格与报价。
产品优势
模塑格栅具有耐腐蚀、轻质高强、防滑、绝缘及免维护等特点，25*152H38规格在楼梯踏板应用中兼顾承载与防滑性能。产品寿命长且安装便捷，可减少后期维护成本，欢迎联系我们获取详细规格与报价。
询盘引导
如需了解玻璃钢模塑格栅25*152H38楼梯踏板的详细规格、树脂选型或批量供货方案，欢迎联系我们获取详细规格与报价。我们的技术团队可协助您完成选型与工程适配。
