玻璃钢模塑格栅20*20H14
Please feel freely to contact with us for new price .
Genius FRP

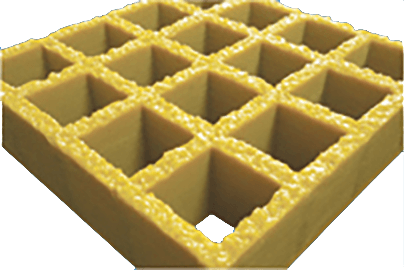

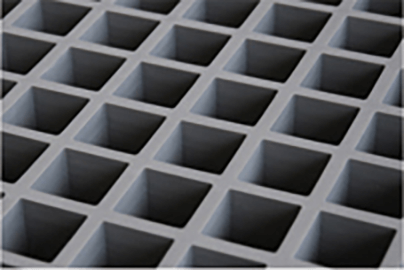

Glass fiber reinforced plastic ( FRP ) molding grid is a kind of plate material with a certain opening rate, which is made of unsaturated polyester resin ( including isophthalic up, linbenxing, type and fenquanxing, bisphenol ) as skeleton in the customization mold.
Name | Content | Type |
Resin | 35% | OFR-25、IFR-25、VEFR-25 |
Fiberglass | 33% | E |
Filler | 31% | ATH、PR |
Others | 1% | --- |
Introduction of raw materials
Resin type
Code | Resin type | Flame retardant property | Recommended usage occasions |
MP-5 | Phenolic type | Oxygen index can reach about 80 | Low toxicity and high flame retardant, fire safety is very important for the occasion |
VEFR-25 | Vinyl type | Oxygen index 28 or above | Acid, alkali and other corrosive harsh environment |
VEFR-10 | Vinyl type | Oxygen index 35 or above | Flame retardant requirements of high acid, alkali and good occasions |
IFR-25 | Meta benzene | Oxygen index 28 or above | A VEFR type economy, and excellent, moderate acid alkali and solvent |
IFGR-30 | Benzene food grade | Oxygen index 26 | Mainly used in meat products and food processing plants |
OFR-25 | Ortho type | Oxygen index 28 or above | General acid and alkali environment |
OCR | Ortho type | Oxygen index below 28 | OFR-25 economy, no flame retardant requirements |
The type selection of coarse glass fiber
Code | Coarse sand type | Recommended usage occasions |
E | Non alkali sand | For high strength requirements and high corrosion resistance of the occasion |
Selected filler type
Code | Filler type | Recommended usage occasions |
ATH | Aluminum hydroxide | Retardant, smoke suppression, corrosion-resistant occasions |
PR | No filler, pure resin | For high corrosion-resistant applications |

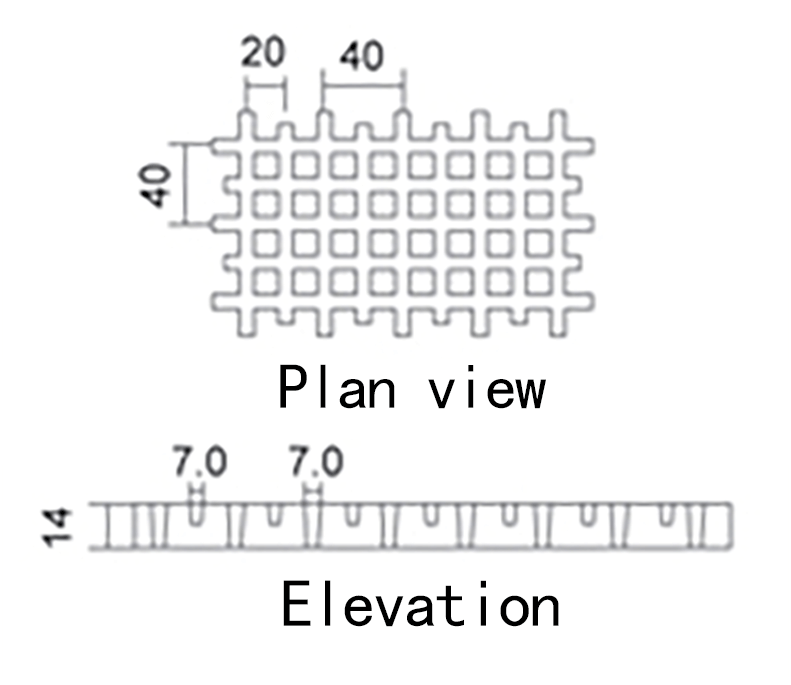

20*20*14(mm)
Panel size available:
1247*4047,1007*3007 Bidirectional force.
Bearing bar thickness (Top/Bottom)：7.5/5.0
Bearing bar center：20
Open Aera：42%
Approx Weight：10.5kgs/m²
The characteristics:
Corrosion Resistant
Slip Resistant
Superior Ergonomics
Low Install Cost
Fire Retardant
Lightweight,Bi-directional Strength, and the cutting makes the pipes easier to install.
The internal and external uniform color and color can be arbitrary choice.
It has good social and economic benefits.
Can design , flexible and varied size, size stability
Widely used in:
Genius FRP grating is widely used in landing (industrial) floor, stairs and walkways and platforms. Using glass fiber reinforced plastic grille has many advantages: glass fiber reinforced plastic grille, weather resistance, low maintenance cost, has a long service life and good anti-skid performance. In addition, the glass fiber reinforced plastic grille is simple, fast, flexible processing and assembly.
应用场景
玻璃钢模塑格栅20*20H14适用于需要防滑、耐腐蚀与承载的通行平台、走道、沟盖及设备操作面，常见于化工、水处理、电镀与海洋工程等潮湿或化学暴露环境。其20*20mm网格与H14厚度规格便于在常规支撑间距下铺设，具体适配工况欢迎联系我们确认。
选型指导
选型时请确认树脂体系（如邻苯、间苯、乙烯基或双酚A型）与所需阻燃等级，以匹配介质的腐蚀性与防火要求；同时结合跨度、荷载与安装方式核对格栅厚度与网格尺寸。若您提供使用环境与承载条件，我们可协助推荐合适配置并给出规格说明。
产品优势
模塑格栅由不饱和聚酯树脂与玻璃纤维在模具中一次成型，网格交错结构使荷载分布均匀，兼具轻质、高强与耐腐蚀特性，且表面防滑、易于切割安装。相比传统金属格栅，其在潮湿与化学环境中更耐锈蚀，维护需求较低。
询盘引导
如需了解玻璃钢模塑格栅20*20H14的详细规格、树脂选型与商务条款，欢迎联系我们获取详细规格与报价。请提供使用环境、尺寸需求与数量，我们将据此给出对应方案与供货信息。
