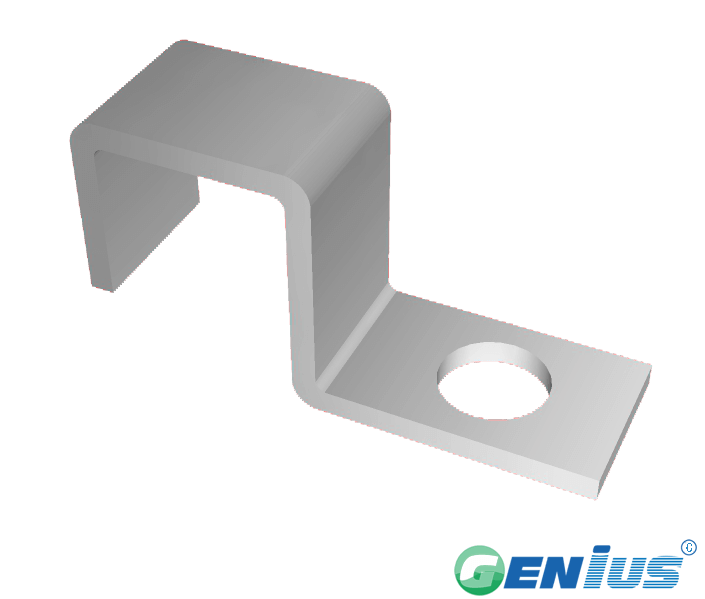

L型夹具（不锈钢304）
发起询价
欢迎询价。
38*38 H14 Shop sand
Applicable lattice:38*38
Applicable thickness: 14
Material:Stainless steel 304,Stainless steel 316
38*38 H20
Applicable lattice:38*38
Applicable thickness: 20
Material:Stainless steel 304,Stainless steel 316
38*38/40*40/50*50 H25
Applicable lattice:38*38,40*40,50*50
Applicable thickness: 25
Material:Stainless steel 304,Stainless steel 316
38*38/40*40 H30
Applicable lattice:38*38,40*40
Applicable thickness: 30
Material:Stainless steel 304,Stainless steel 316
38*38 H38
Applicable lattice:38*38
Applicable thickness: 38
Material:Stainless steel 304,Stainless steel 316
38*38/50*50 H50
Applicable lattice:38*38,50*50
Applicable thickness: 50
Material:Stainless steel 304,Stainless steel 316
38*38 H60
Applicable lattice:38*38
Applicable thickness: 60
Material:Stainless steel 304,Stainless steel 316
40*40/50*50 H40
Applicable lattice:40*40,50*50
Applicable thickness: 40
Material:Stainless steel 304,Stainless steel 316
50*50 H13
Applicable lattice:50*50
Applicable thickness: 13
Material:Stainless steel 304,Stainless steel 316
Application Scenarios
The L-clamp (stainless steel 304) is used for fixed connections between grating and supporting structures. It is commonly used in platforms, walkways, trench covers and various FRP grating installation applications, providing positioning and locking. Different specifications correspond to different grating mesh sizes and thicknesses; selection can be determined based on the actual installation position and load-bearing requirements.
Selection Guide
When selecting, please first confirm the mesh size and thickness of the grating, then choose the corresponding clamp specification. For example, 38*38 mesh can match multiple thickness models, while 40*40 and 50*50 mesh correspond to their respective models. For material, 304 or 316 stainless steel can be selected according to the corrosiveness of the service environment. Please contact us for detailed specifications and quotations.
Product Advantages
This clamp is made of stainless steel 304 or 316, offering good corrosion resistance and load-bearing capacity. It is easy to install and can be repeatedly disassembled and reassembled, helping improve the overall stability and service life of the grating system. Surface treatment and dimensional accuracy can meet the requirements of conventional industrial and outdoor environments.
Inquiry Guide
For adaptation details of different specifications, material selection or bulk purchasing options, please contact us for detailed specifications and quotations. We can provide selection recommendations and technical support based on your project requirements.
Technical Specifications
- Available materials: Stainless steel 304 and Stainless steel 316 for enhanced corrosion resistance.
- Designed for use with FRP grating: clamp specifications correspond to mesh sizes 38*38, 40*40, and 50*50.
- Thickness options: 14, 20, 25, 30, and 38 to match the grating thickness.
- Selection guide: first confirm the mesh size and thickness of the grating, then choose the corresponding clamp specification.
- For custom sizes or additional parameters, contact us for the full parameter list.
Operating Environment
- Suitable for both indoor and outdoor industrial environments where grating needs to be secured.
- Resists corrosion in humid, chemical, and marine atmospheres, with Stainless steel 316 offering enhanced protection.
- Performs across a range of temperatures typical of industrial settings, maintaining structural integrity.
- Ideal for platforms, walkways, and structural applications in processing plants, water treatment facilities, and offshore installations.
